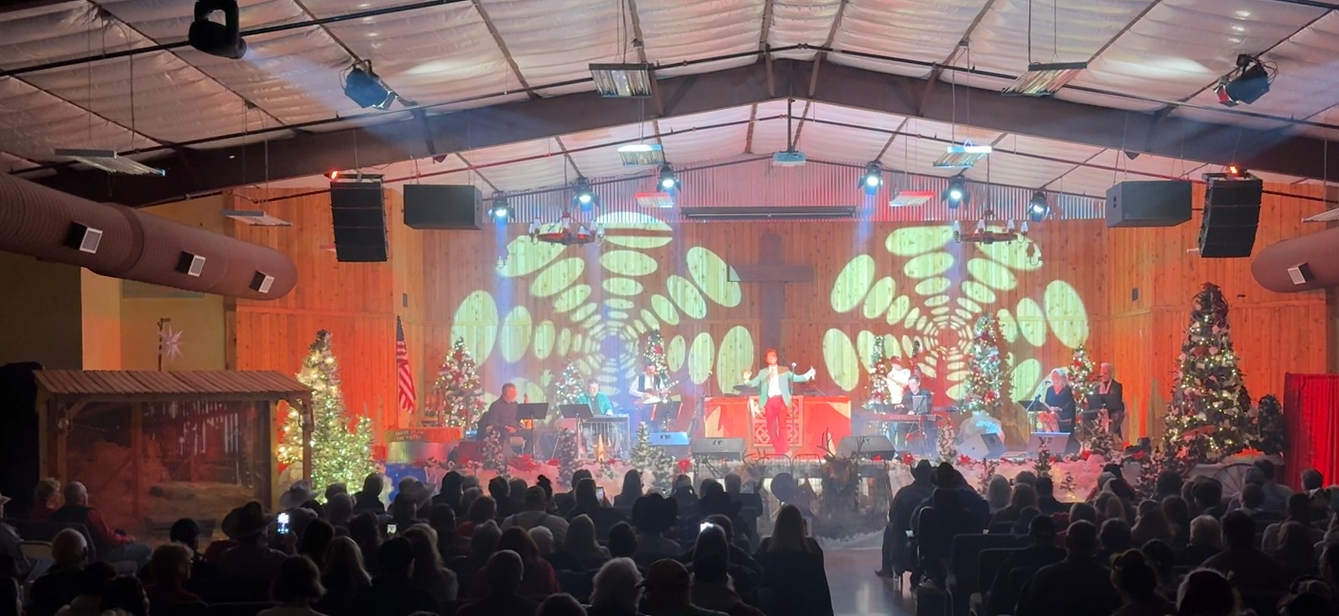

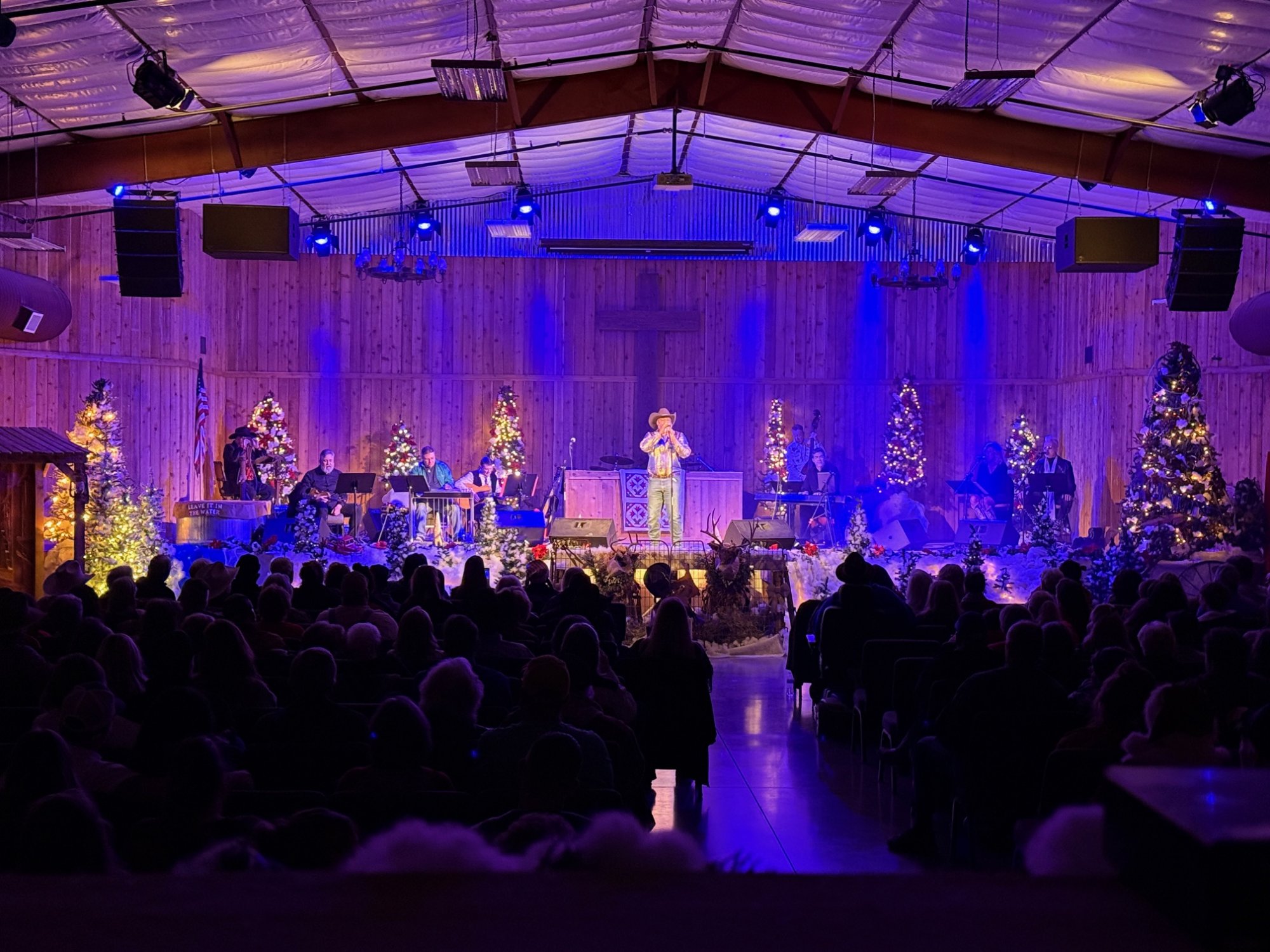

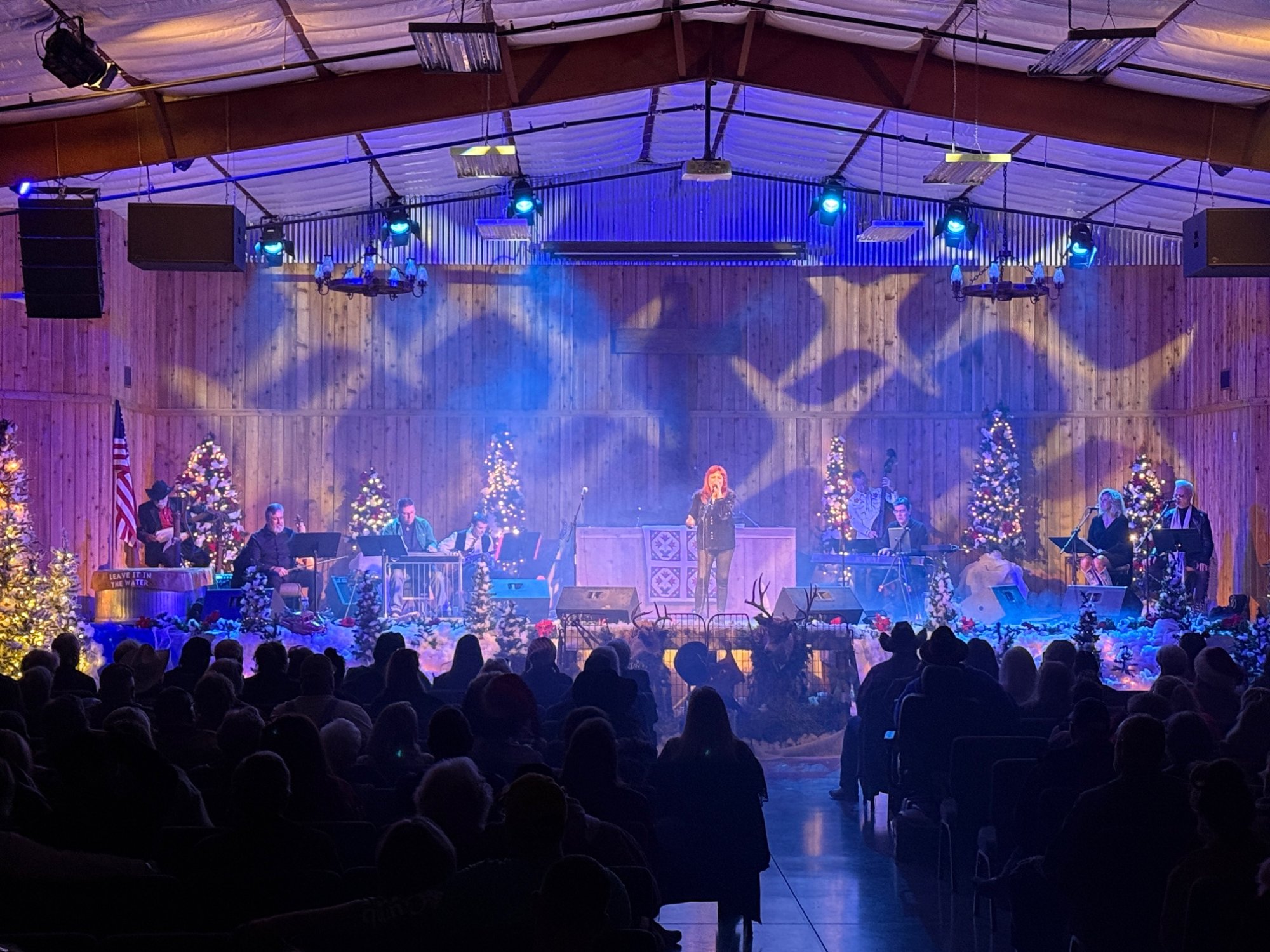

The design consists of 4 different Elation Professional fixtures. The back-lighting is comprised of 6 Fuze Par Z zoomable RGBW LEDs. Side fill is made up of 3 SixPar 300 RGBWAU on each side. 2 KL6FR Fresnel with motorized zoom make up the front fill and 2 SixBar 500 RGBWAU Bar Fixtures were used as uplights on each side of the podium. To create movement and effect as well as give the ability to highlight different areas, 2 Fuze SFX mover heads were installed halfway back in the auditorium, one on each side.
Control is achieved by an ADJ MyDMX 3.0 at front of house. 3 Elation EFly wireless DMX transceivers provide provide connection to each lighting point.
